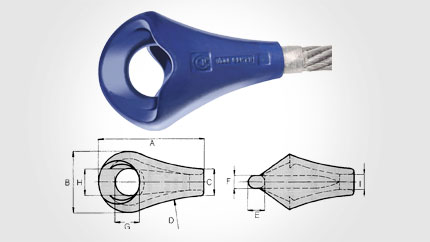

Rope pear socket

Part no	No.	Wire mm	WLL kg	A	B	C	D	E	F	G	H	I	Weight kgs
G006710001	1	10-11	1500	81	48	22	195	12	11.5	20	24	12	0.3
G006710002	2	12-13	2000	94	56	25	195	15.5	13.5	22	25	14	0.42
G006710003	3	14-15	2500	108	64	28	220	17.5	15.5	24	29	16	0.67
G006710004	4	16-17	3000	122	70	31	220	19.5	17.5	26	31	18	0.95
G006710005	5	18-19	4500	135	84	33	245	21	19	30	42	20	1.3
G006710006	6	20-21	5000	152	84	36	310	23	21	33	38	23	1.6
G006710007	7	22-24	7000	166	100	40	310	26	23	37	48	26	2.4
G006710008	8	25-27	8000	186	100	43	350	28	25	39	44	29	2.6
G006710009	9	28-30	11000	202	120	45	350	31	27	40	58	32	3.6
G006710010	10	31-33	13000	222	120	52	445	32	28.5	45	56	35	4.4
G006710011	11	34-36	15000	239	142	55	445	36	31.5	50	70	40	6
G006710012	12	37-39	17000	264	142	60	495	39	34.5	51	64	41	7.5
G006710013	13	40-42	21000	285	166	63	555	43	36.5	59	80	44	11.5
G006710014	14	43-45	26000	312	166	68	595	47	40	62	72	48	11.5
G006710015	15	46-48	30000	337	170	75	595	51	44	66	68	53	12.5
G006710017	17	56	42500	400	220	84	880	60	54	75	90	59	23
