Socket open wedge

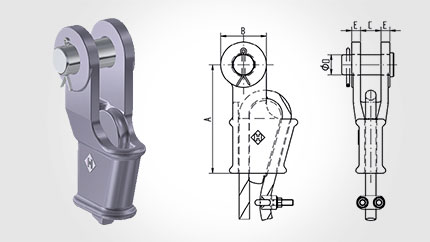

Part no	Wire mm	A	B	C	D	E	MBL tonnes	Weight kgs
G006667100	9-10	145	47	20.5	20.6	11	10	1.6
G006667130	11-13	146	57	25	25	12	16	2.1
G006667160	14-16	176	70	31	30	15	25	3.7
G006667190	17-19	212	80	38	35	16	32	5.8
G006667220	20-22	240	96	44	41	19	45	9
G006667260	23-26	274	114	51	51	22	70	14.8
G006667262	27-29	310	130	57	57	25	100	22
G006667264	30-33	350	146	63	64	28	125	28.3
G006667266	34-36	400	148	69	64	28	125	38
G006667268	37-40	450	160	76	70	30	150	51
G006667270	41-43	500	174	76	76	33	200	60.7
G006667272	44-48	550	200	89	89	39	260	94.5
