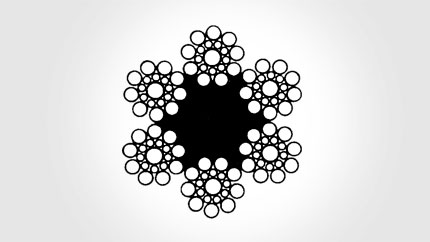

6×19 – fibre core, galvanized

Part no	Nominal diam. d mm	Nominal diam. d tol. %	Approx. mass	Weight kgs	Min. breaking load 1770 N/mm2	Min. breaking force 180 kp/mm2
G106930030	3	+8-0	3,2	0.03	4,9	500
G106930040	4	+7-0	5,7	0.06	8,7	887
G106930050	5	+7-0	9,6	0.09	14,6	1490
G106930060	6	+6-0	13,8	0.13	21,0	2140
G106930070	7	+6-0	18,8	0.2	28,6	2920
G106930080	8	+5-0	24,6	0.23	37,4	3810
G106930090	9	+5-0	31,2	29,1	47,3	4830
G106930100	10	+5-0	38,5	0.36	58,4	5960
G106930110	11	+5-0	46,5	0.44	70,7	7210
G106930120	12	+5-0	55,4	0.52	84,1	8580
G106930130	13	+5-0	65,0	0.52	98,7	10100
G106930140	14	+5-0	75,4	70,4	114	11700
G106930160	16	+5-0	98,5	0.93	150	15300
G106930180	18	+5-0	125,0	1.2	189	19300
G106930200	20	+5-0	154,0	144	234	23800
G106930220	22	+5-0	186,0	1.83	283	28800
G106930240	24	+5-0	222,0	2.22	336	34300
G106930260	26	+5-0	260,0	2.46	395	40300
G106930280	28	+5-0	302,0	2.85	458	46700
G106930320	32	+5-0	394,0	368	598	61000
G106930360	36	+5-0	499,0	465	757	77200
