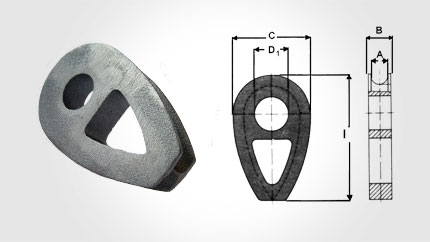

Solid thimble

Part no	Wire mm	A	B	D1 (unwrought)	D1 (wrought)	C	L	Weight kgs
G006690080	8	9	15,0	14	20	40	66	0.15
G006690100	10	11	17,5	18	25	50	82	0.24
G006690120	12	13	20,0	21	30	60	98	0.39
G006690140	14	16	23,5	25	35	70	114	0.63
G006690160	16	18	26,0	28	40	80	130	0.88
G006690180	18	20	28,5	31	45	90	145	1.19
G006690200	20	22	31,0	35	50	100	161	1.65
G006690220	22	24	33,5	38	55	110	177	2.06
G006690240	24	26	36,0	41	60	120	193	2.54
G006690260	26	29	39,5	44	65	130	209	3.31
G006690280	28	31	42,0	47	70	140	224	4.14
G006690320	32	35	47,0	53	80	160	256	5.98
G006690360	36	40	53,0	59	90	180	288	8.7
G006690400	40	44	58,0	65	100	200	320	13
