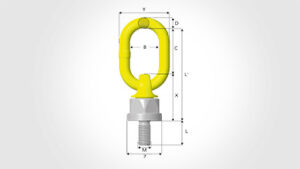

De-centered Lifting Point DLP – UNC thread

Part no	Code	B	C	D	E	F	G	L	L2	L1	X	Y	Z	M inch	Weight kgs
Z102308	DLP-5/16″-18 UNC	35	48	10	39	14	10	13		78	30	55	26	5/16″	0.3
Z102310	DLP-3/8″-16 UNC	35	48	10	39	14	10	13		78	30	55	26	3/8″	0.3
Z102312	DLP-1/2″-13 UNC	35	48	12	51	20	14	23		91	44	59	32	1/2″	0.5
Z102316	DLP-5/8″-11 UNC	35	48	12	51	20	14	23		91	44	59	32	5/8″	0.5
Z102320	DLP-3/4″-10 UNC	54	88	18	71	28	18	34		145	58	90	48	3/4″	1.6
Z102321	DLP-7/8″-9 UNC	54	88	18	71	28	18	34		145	58	90	48	7/8″	1.7
Z102324	DLP-1″-8 UNC	54	88	18	71	28	18	34		145	58	90	48	1″	1.7
Z102330	DLP- 1 1/4″-7 UNC	82	94	26	104	39	27	53		182	88	122	75	1 1/4″	5.5
Z102336	DLP-1 1/2″-6 UNC	82	94	26	104	39	27	53		182	88	122	75	1 1/2″	5.7
Z102342	DLP-1 3/4″-5 UNC	100	103	36	136	54	34	73		216	113	156	110	1 3/4″	12.3
Z102348	DLP-2″- 4.5 UNC	100	103	36	136	54	34	73		216	113	156	110	2″	12.6
–
Z1023080L	DLP-5/16″-18 UNC LB	35	48	10	39	14	10		97,5	78	30	55	26	5/16″	0.31
Z1023100L	DLP-3/8″-16 UNC LB	35	48	10	39	14	10		97,5	78	30	55	26	3/8″	0.33
Z1023120L	DLP-1/2″-13 UNC LB	35	48	12	51	20	14		118	91	44	59	32	1/2″	0.64
Z1023160L	DLP-5/8″-11 UNC LB	35	48	12	51	20	14		158	91	44	59	32	5/8″	0.8
Z1023200L	DLP-3/4″-10 UNC LB	54	88	18	71	28	18		198	145	58	90	48	3/4″	2.09
Z1023210L	DLP-7/8″-9 UNC LB	54	88	18	71	28	18		238	145	58	90	48	7/8″	2.29
Z1023240L	DLP-1″-8 UNC LB	54	88	18	71	28	18		238	145	58	90	48	1″	2.72
Z1023300L	DLP- 1 1/4″-7 UNC LB	82	94	26	104	39	27		295	182	88	122	75	1 1/4″	6.95
Z1023360L	DLP-1 1/2″-6 UNC LB	82	94	26	104	39	27		295	182	88	122	75	1 1/2″	8.05
Z1023420L	DLP-1 3/4″-5 UNC LB	100	103	36	136	54	34		293	216	113	156	110	1 3/4″	15.17
Z1023480L	DLP-2″- 4.5 UNC LB	100	103	36	136	54	34		293	216	113	156	110	2″	16.8
