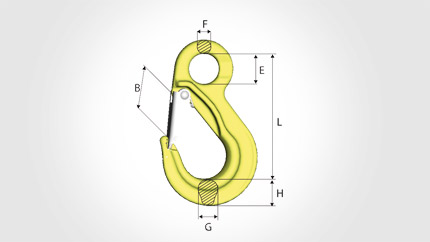

Posted on June 20, 2021By hdyer674In Chain slingLeave a comment Detailed information CAD Part no Code WLL t L B E F G H Weight kgs Z101128 EKN- 6-10 1.5 93 25 23 10 17 20 0.371 Z101130 EKN-7/8-10 2.6 108 26 28 12 17 23 0.555 Z101132 EKN-10-10 4.0 134 37 34 14 23 30 1.024 Z101134 EKN-13-10 6.8 166 42 44 18 28 38 2.081 Z101136 EKN-16-10 10.3 203 53 56 22 36 47 4.048 Z101327 EKN-20-10 16.0 229 61 61 26 42 60 6.404 Z101328 EKN-22-10 20.0 267 73 64 31 43 67 8.74 Z101329 EKN-26-10 27.3 301 82 66 32 51 75 13.2 Z101330 EKN-32-10 40.0 353 96 90 38 61 98 25 FacebookTwitterLinkedIn
